Instrument Air Compressor Packages

DNOW Process Solutions designs and fabricates compressor packages that convert your production facilities to operate on clean, compressed air instead of fuel gas. Our compressors are fully configurable to your specifications, allowing you to run vessel control valves, dump valves, AODD pumps and more. Contact us today to reduce your carbon footprint, meet your scope 1 GHG emissions targets and minimize fuel gas waste.

Instrument-air-compressor-skid_thumb

Reduce Your Scope 1 GHG Emissions

DNOW Process Solutions experts work with you to determine your specific requirements, based on your equipment and your emissions goals. We size compressors appropriate for the pneumatic devices you have on site to eliminate fuel gas use, if possible.

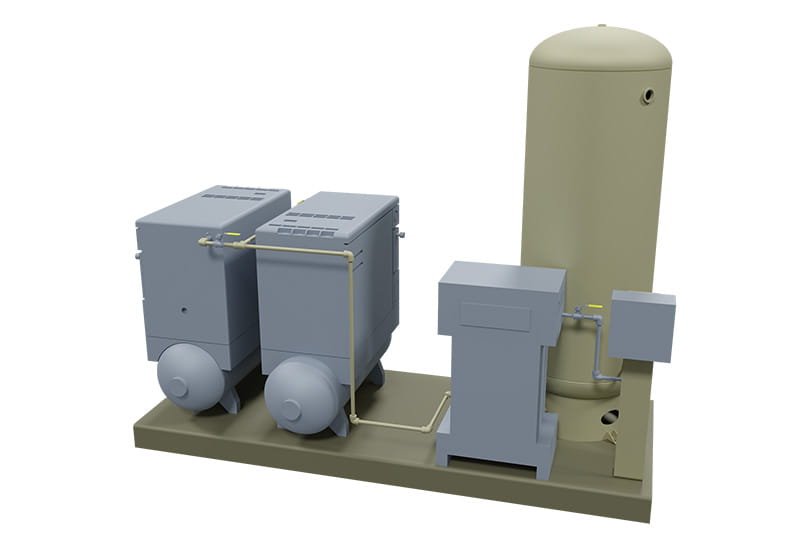

Here's a standard instrument air compressor package:

  • Reciprocating air compressor(s)
  • Desiccant air dryer
  • Vertical air receiver
  • Instrumentation & interconnecting PVF
  • Electrical junction box & transformer
  • Steel skid, mounting compressor(s) & dryer
Image: Power Service Efficient Air Compressors and Dryers for Reliable Compressed Air Solutions for clean, oil-free air needs.
1 Turnkey IA package: (2) Atlas Copco GA 75hp oil-injected rotary screw air compressors, CD+ 150 desiccant dryer, 433 cfm // Typical applications: plants, compressor stations, etc. Used in lieu of fuel gas for starting engine drive compressors, all facility pneumatic valves, etc.
Image: Power Service, A DistributionNOW Company, Instrument Air Compressor Skid Helping You Reduce GHG Emissions
2 Turnkey IA package: (2) Atlas Copco GX 5hp oil-injected rotary screw air compressors, membrane dryer or CD+ 7 desiccant dryer, 35 cfm with (2) 1,060 gal dry air receiver tanks to provide adequate retention time on a power loss. // Typical applications: 10-30k bpd tank batteries, used in lieu of fuel gas for all facility pneumatic valves, etc.
Image: Power Service Turnkey Instrument Air Compressor Skid Package to Help You Reduce GHG Emissions
3 Turnkey IA package: (2) Atlas Copco GX 5hp oil-injected rotary screw air compressors, membrane dryer or CD+ 7 desiccant dryer, 35 cfm with (2) 1,060 gal dry air receiver tanks to provide adequate retention time on a power loss. // Typical applications: 10-30k bpd tank batteries, used in lieu of fuel gas for all facility pneumatic valves, etc.
Image: Piping and instrumentation installed for a Power Service Turnkey Instrument Air Compressor Skid Package to Help Reduce GHG Emissions
4 Piping and instrumentation installed for a turnkey IA package: (2) Atlas Copco GX 5hp oil-injected rotary screw air compressors, membrane dryer or CD+ 7 desiccant dryer, 35 cfm with (2) 1,060 gal dry air receiver tanks to provide adequate retention time on a power loss. // Typical applications: 10-30k bpd tank batteries, used in lieu of fuel gas for all facility pneumatic valves, etc.
Image: Electrical and junction boxes wired and ready for power on a Power Service turnkey IA package
5 All electrical and junction boxes wired and ready for power for a turnkey IA package: (2) Atlas Copco GX 5hp oil-injected rotary screw air compressors, membrane dryer or CD+ 7 desiccant dryer, 35 cfm with (2) 1,060 gal dry air receiver tanks to provide adequate retention time on a power loss. // Typical applications: 10-30k bpd tank batteries, used in lieu of fuel gas for all facility pneumatic valves, etc.
Image: Turnkey Instrument Air Compressor Skid in Power Service Workshop

6 Turnkey IA package: (2) Atlas Copco CR 5hp reciprocating air compressors, membrane dryer or CD+ 7 desiccant dryer, 35 cfm with 80 gal dry air receiver tank // Typical applications: 5-20k bpd tank batteries, used in lieu of fuel gas for all facility pneumatic valves, etc.

Specifications

Reciprocating Compressor Options 5 hp, 7.5 hp and 10 hp, simplex or duplex units
Rotary Compressor Options 5 hp and 10 hp, simplex or duplex units
Dryer Units -40°F dewpoint regenerative membrane or desiccant units
Electrical 480 V for direct field use
Hookup Pre-plumbed skid, ready for service

Downloads

DNOW Process Solutions Instrument Air Compressor Packages Flyerfile download
Power Service Products & Services Guidefile download

How DNOW helped one customer reduce their carbon footprint



DNOW Process solutions is working with one oil and gas operator to meet their goal of reducing methane intensity.

  • 150+ instrument air compressor packages provided over 3-4 years
  • Modular skids and permanent installations
  • Methane intensity reduction goal: 70% over 5 years

Contact us today to learn how DNOW can help you reach your emissions goals!

Build It Now With eSpec™

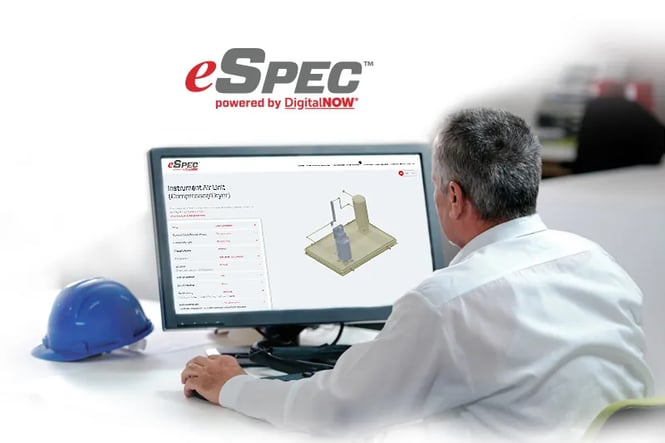

eSpec product configurator is the quick and easy way to order your instrument air compressor packages. Choose design options and material specifications for your project, and then watch as the system creates a 3D drawing and a priced, complete technical proposal that you can submit to DNOW in one click.

  • Build anytime, anywhere – even multiple packages for a single project submission
  • Get real-time estimates – a complete technical quote is generated with estimated pricing
  • Build for the future – save your designs for upcoming projects and easy reordering
Build it with eSpec
