Pexgol PE-Xa Pipe and Fittings

Durable and Reliable Piping Solutions

DistributionNOW is a North American distributor of heavy duty Pexgol cross-linked polyethylene (PE-Xa) pipe for oil and gas, mining and other industries. Pexgol has unique benefits that make it an excellent choice for transportation of oilfield fluids, abrasive slurries, brine, de-watering applications, water supply, compressed air and other mining and mineral processing applications.

Pexgol PE-Xa pipe and fittings from DNOW
As a North American distributor partner, DistributionNOW proudly offers Pexgol PE-Xa pipe and fittings designed with excellent durability for demanding energy and industrial applications. This page highlights the Pexgol products and services available from DNOW in North America. Please contact our sales representatives for inquiries, quotes and questions.

Pexgol PE-Xa Line Pipe

Pexgol PE-Xa cross-linked polyethylene line pipe has many features that make it an excellent, cost-effective alternative to steel or HDPE pipe:

  • Available in sizes up to 28 in. diameter
  • Fittings and standard pipe lengths available for process piping applications
  • Excellent chemical and corrosion resistance
  • Reduced installation costs with long-length coils and availability of mechanical or electrofusion connectors
  • Outstanding durability and resistance to point loads, scratching, impact and water hammer
  • Improved flow capacity due to smooth interior surface
  • Excellent resistance to scaling
  • Good abrasion resistance
  • Wide working temperature range
  • UV resistant
Materials PE-Xa cross-linked polyethylene
Coils/Spools 1 in. (32 mm) to 12 in. (315 mm) and up to 14,760 ft. (4500 m) lengths, depending upon OD
Joints 14 in. (355 mm) to 28 in. (710 mm)
Pressure Rating Up to 491 psig (3386 kPag), depending upon temperature
Temperature Rating -58° F (-50° C) to 230° F (110° C)
End Connections Plain or flared end

Pexgol Fittings

DistributionNOW offers a variety of high-quality fittings for Pexgol cross-linked polyethylene line pipe to enable quick and easy installations and for process piping applications.

  • PE-Xa elbows, reducers, saddles
  • Mechanical flanged couplers
  • Flared end connectors (stub end and loose flanges)
  • Electrofusion couplers and fittings
  • Mechanical double connector
  • PE-Xa lined steel fittings
  • PE-Xc fittings
  • Brass fittings
  • Other fittings
Materials PE-Xa cross-linked polyethylene
Sizes 1 in. (32 mm) to 12 in. (315 mm)
Pressure Rating Up to 491 psig (3386 kPag), depending upon temperature
Temperature Rating -58° F (-50° C) to 230° F (110° C)
End Connections Plain or flared end

Pexgol Pipe Supervision Services

We have the technical expertise to meet your requirements. Our field supervisors have solid industry experience and are certified by Pexgol to provide these services:

  • Supervision of installation procedures
  • Product training certifications
  • Available 24 hours/day

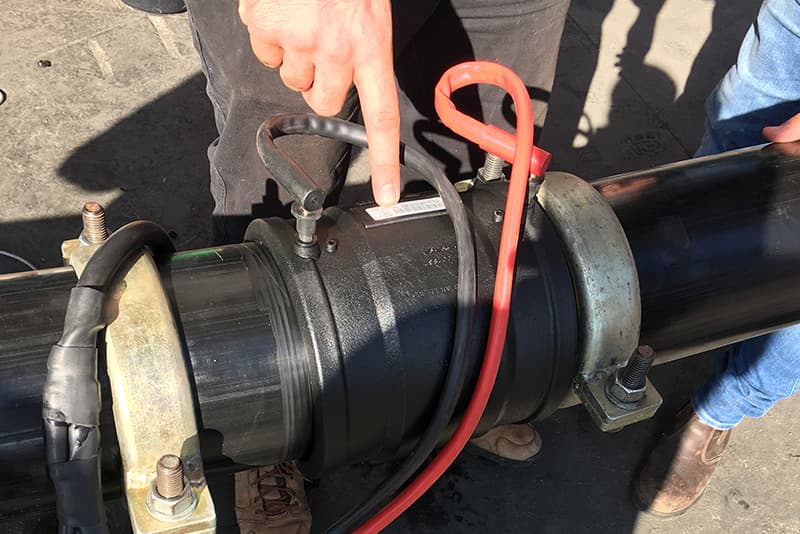

Pexgol supervision services by DNOW

Pexgol Downloads

Pexgol Oil and Gas Brochurefile download
Pexgol Mining and Mineral Processing Brochurefile download
Pexgol Engineering Guidefile download
Pexgol Common Fittings Brochurefile download

Pexgol Media Gallery

HubSpot Video

Pexgol PE-Xa Piping Solutions: What is PE-X?

Pexgol cross-linked polyethylene pipe from DistributionNOW is manufactured with a highly stable molecular structure that offers excellent resistance to corrosive chemicals and abrasive applications.

#Pexgol #PEXaPipe #CoiledLinePipe #HDPEpipe
HubSpot Video

Uncoiling Pexgol PE-Xa Pipe for Installation

Pexgol cross-linked polyethylene (PE-Xa) pipe from Pexgol in coils up to 14,760 ft. long, depending on OD. PE-Xa pipe’s unique design is ideal for oil and gas, mining, mineral processing, and corrosive or abrasive applications.

#Pexgol #PEXaPipe #PEXpipe #CoiledLinePipe #HDPEpipe
HubSpot Video

Advantages of Installing Pexgol Pipes

An outstanding feature of the Pexgol pipe is its flexibility, due to the cross-linked structure. This means that it can return to its original diameter after de-coiling, making it ideal for mining applications.

#Pexgol #PEXaPipe #PEXpipe #CoiledLinePipe #HDPEpipe
HubSpot Video

Horizontal Drilling Application with Pexgol PE-Xa Pipe

An outstanding feature of the Pexgol pipe is its flexibility, due to the cross-linked structure. This means that it can return to its original diameter after de-coiling, making it ideal for mining applications.

#Pexgol #PEXaPipe #PEXpipe #HorizontalDirectionalDrilling
HubSpot Video

Durability Testing Pexgol PE-Xa Pipe

Pexgol PE-Xa line pipe is designed at the molecular level to be highly resistant to impact, fracture, fatigue, corrosion and abrasion for the toughest applications and environments. Even this 36+ ton (33,300 kg) bulldozer can't crush it.

#Pexgol #PEXaPipe #PEXpipe #PipeDurability #HDPEpipe

About Pexgol

Pexgol, a division of Golan Plastic Products, is a global producer of heavy duty PE-Xa pipe material with more than 30 years of experience. Pexgol pipelines are designed and constructed to run safely at maximum efficiency, bringing you a reliable, cost-saving solution.

Whatever your challenge, Pexgol can provide the solution. www.pexgol.com
