Separators

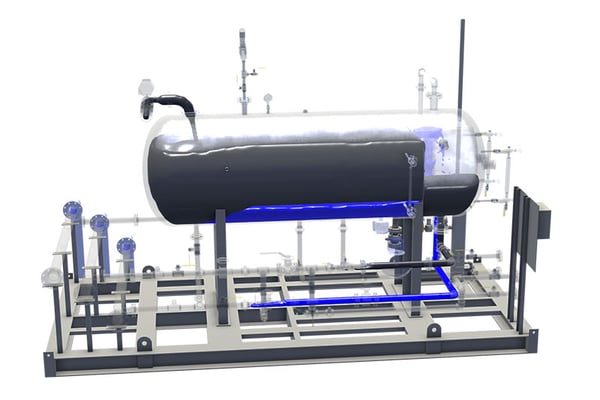

DNOW U.S. Process Solutions provides all types of horizontal and vertical separation systems to separate liquid, gas and/or sand from process streams.

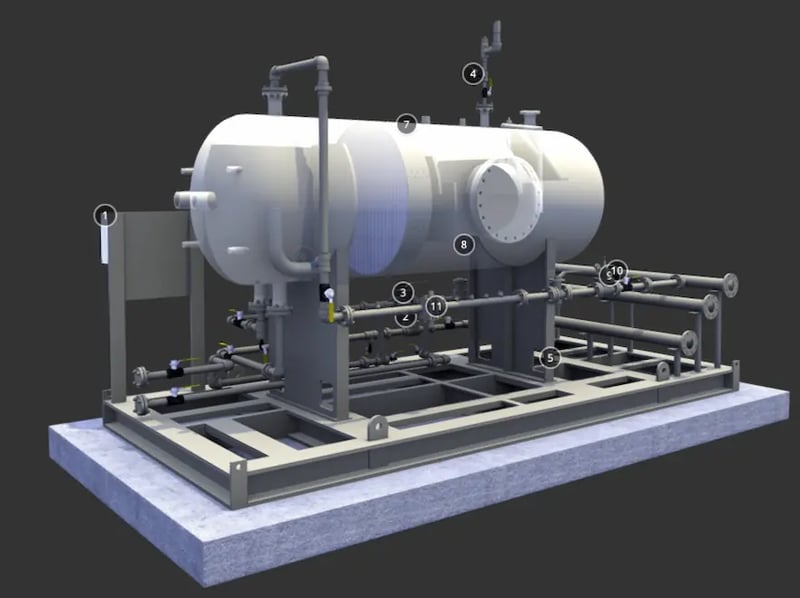

Single-Pak 3-Phase Modular Production Skid Components and Features

We will design and build your unit to fit your specific requirements, while meeting industry standards.

Bill of Materials (BOM)

  1. Electrical Systems & Automation - Integration of any PLC platform for control and data acquisition. This also includes electrical system supplies such as wiring, junction boxes, and cable conduit.
  2. Valves - Level Controls - Wide selection of valves and controllers used to regulate level and flow including mechanical pneumatic and electrical.
  3. Pipe, Valves, Fittings (PVF) - A wide selection of PVF can be integrated into any system depending on customers needs.
  4. Instrumentation & Measurement - We offer many measurement options for oil, water and gas flows, including: Coriolis, Magnetic, Turbine, and Orifice. We can help you design the best system to optimize your operation.
  5. ASME Vessel Fabrication - We can engineer, design, and fabricate a full range of ASME vessels and other production equipment to help optimize most any operation.

Note: Interactive model above requires the use of cookies from Sketchfab, 3D, VR & AR software, in order to load the model. On older browsers or devices with WebGL disabled, models are displayed with an image-based fallback. Check to make sure your browser settings allow for "hardware acceleration", also known as "GPU acceleration.

Products Offered

Our designs and construction standards ensure optimum performance for virtually any application.

  • Vertical and horizontal separators
  • 2-phase, 3-phase and 4-phase separators
  • Modular, skid-mounted test separators
  • Hybrid separators (separator + treater)
  • Filter separators
  • Vertical induced-gas flotation (IGF) cells
  • Induced-gas coalescing (IGC) units
  • Gas scrubbers
  • Free water knockout (FWKO) vessels
  • Desanders
  • Separator and measurement packages

Certifications

 ABSA
 ASME U Stamp
 CE
 CSA
 CWB
 NB
 NBCA R Stamp
 UL

Specifications

Materials of Construction Carbon steel, stainless & alloy steel
Dimensions Vessels up to 12 ft. diameter, 100 ft. length, 8 in. wall thickness
Lifting Capabilities Up to 100 tons
Non-Destructive Testing Ultrasonic, hydrostatic, radiographic, dye penetrant inspection, positive material identification (PMI), hardness and others
Finishing Surface prep, blasting, internal and external coating, painting
Engineering Support Design, process simulation, finite element analysis (FEA)
