Pexgol PE-Xa Pipe

DistributionNOW offers peroxide cross-linked polyethylene (PE-Xa) pipe from Pexgol for use in the oil & gas, mining and mineral processing industries. This product is incredibly resilient to corrosive and abrasive applications, such as oil and produced water transfer, chemical lines, slurry control and mine dewatering. It is highly resistant to impact, fracture and fatigue stresses. PEX pipe can be supplied in standard lengths or long-length coils to reduce the number of connections and minimize installation times.

Contact Sales

Pexgol PE-Xa Line Pipe

Pexgol PE-Xa cross-linked polyethylene line pipe has many features that make it an excellent, cost-effective alternative to steel pipe:

  • Excellent chemical and corrosion resistance (chemical agents, slurries, toxic materials, radioactive materials)
  • Reduced installation costs with long-length coils/spools
  • Improved flow capacity due to smooth interior surface
  • High resistance to abrasion and UV exposure
  • Wide working temperature range
  • API 15-PX compliant
Read Less
Contact Sales

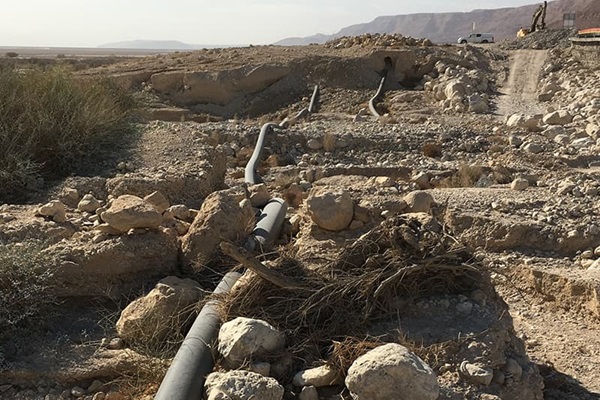

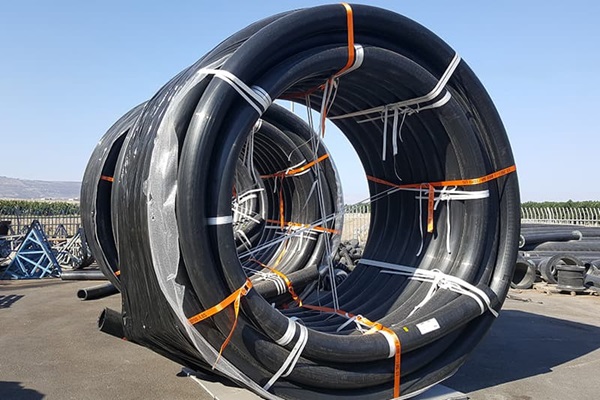

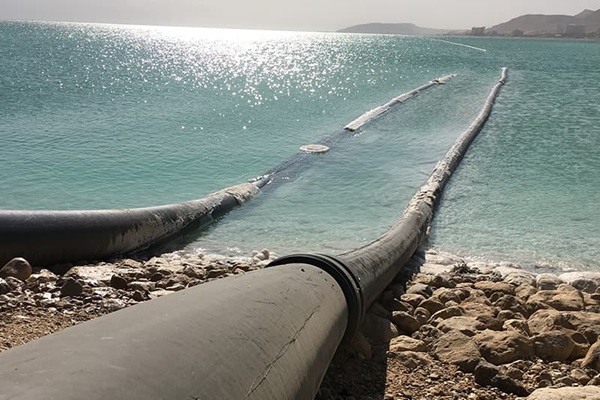

Pipe Pexgol coiled line pipe Pipe Pexgol coiled line pipe
Pipe Pexgol coiled line pipe Pipe Pexgol coiled line pipe
Pipe Pexgol coiled line pipe Pipe Pexgol coiled line pipe
Pexgol_what_is_pex_video_thumb
Pexgol_durability_test_video_thumb
Pexgol_uncoiling_process_video_thumb
Pexgol_horiz_drilling_video_thumb

Specifications

Materials Cross-linked high-density polyethylene (HDPE)
Sizes Coils/Spools: 2 in. (63 mm) to 18 in. (450 mm) and up to 14,760 ft. (4500 m) lengths, depending upon OD
Joints: 14 in. (355 mm) to 28 in. (710 mm)
Pressure Rating Up to 197.9 psig, depending upon temperature
Temperature Rating -58° F (-50° C) to 230° F (110° C)
End Connections Plain or flared end

Downloads

Title File Size Download
TS&M Supply Pexgol Piping Systems Flyer 860.8 KB Download
Pexgol Pipe Class 15 Brochure 885.7 KB Download
Pexgol Pipe Class 24 Brochure 1009.9 KB Download
Pexgol Oil & Gas Brochure 1.3 MB Download
Pexgol Mining & Mineral Processing Brochure 4.8 MB Download
Pexgol Mine Dewatering Brochure 696.2 KB Download

Our Suppliers

  • Golan Plastic Products (Pexgol)

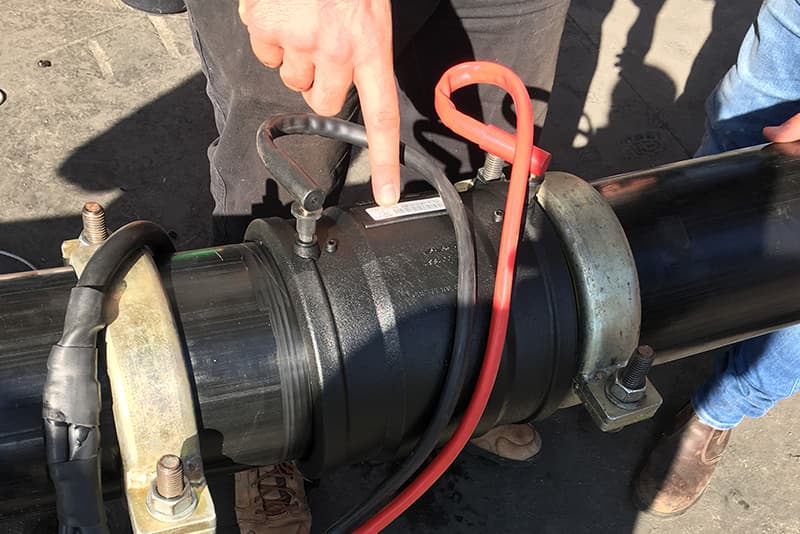

Pexgol PE-Xa Line Pipe Supervision Services

We have the technical expertise to meet your requirements. Our field supervisors have solid industry experience and are certified by Pexgol to provide these services:

  • Supervision of installation procedures
  • Product training certifications
  • Available 24 hours/day
Read Less
Contact Sales
Pexgol PE-Xa Line Pipe Supervision Services
