Kimray Valves, Regulators & Pumps

Serving the oil & gas industry since 1948

DistributionNOW is an authorized distributor of Kimray valves, pressure regulators, glycol pumps and other high-quality products for upstream and midstream oil and gas. Our comprehensive inventory of Kimray control valves, regulators, pumps, dump valves, liquid level controllers, component assemblies and repair kits means the full range of Kimray products is available for quick delivery for your MRO needs or your next project.

Kimray logo
As an authorized global distributor of Kimray products, DNOW proudly offers the full product line, designed to be dependable and capable of handling the most demanding applications. This page highlights some of the more popular Kimray control valves, pressure regulators and glycol pumps. Contact our sales representatives for inquiries, quotes and questions.

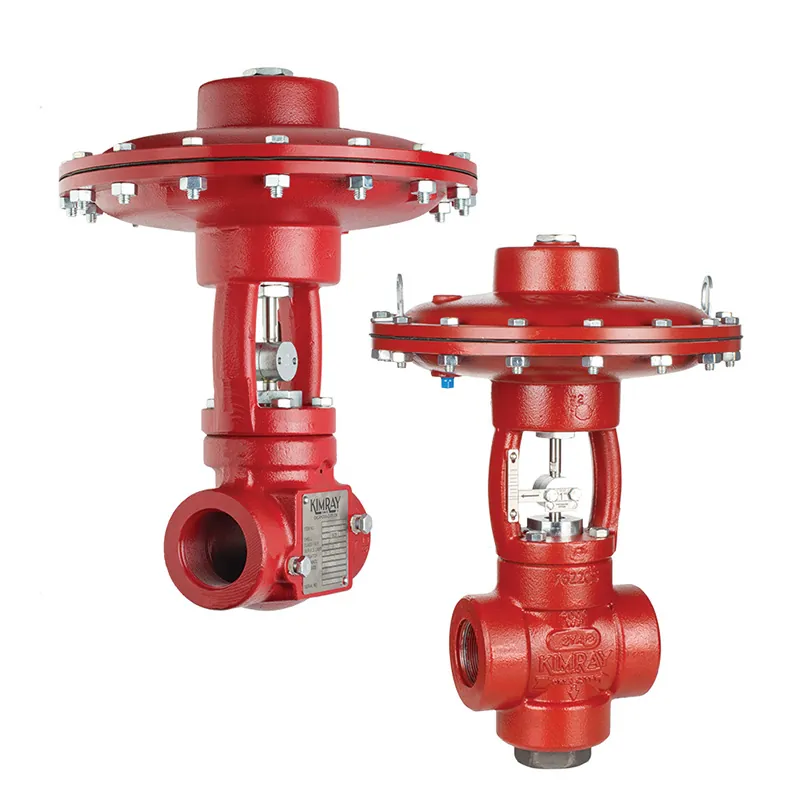

Kimray High Pressure Control Valve

Kimray High Pressure Control Valves

Kimray Series CVC and CVS high pressure control valves are some of the most versatile valves on the market, used in numerous applications to provide control of oil and gas production processes.

Model CVC Cage-Guided High Pressure Control Valves
  • Size: 2 in. – 10 in.
  • Pressure rating: ANSI Class 150, 300, 600, 1500
  • Full port or reduced port
  • Connections: threaded, flanged (RF & RTJ)
  • Trim types: equal percentage, modified E.P., quick open
  • Service types: standard, corrosive, erosive
Model CVS Stem-Guided High Pressure Control Valves
  • Size: 1 in. – 2 in. with 2 in. T-body option for erosive service
  • Pressure rating: ANSI Class 150, 300, 600, 900/1500, 2500 & API 5000
  • Connections: threaded, flanged (RF & RTJ)
  • Trim types: linear (nominal), equal percentage, quick open
  • Service types: standard, corrosive, erosive, mixed duty

This table represents popular product codes for Kimray High Pressure Control Valves. Please download the product cut sheets for the full range of sizes, trims and connection types.

Connection Size Body Type Trim Size Pressure Rating Kimray Catalog* Description
1 in. Through 1/2 in. 4,000 psig CVS1S4TW08L2S 1400 SMT PO 1/2 IV
2 in. Through 1 in. 2,000 psig CVS2S2TW16LKS 2200 SMT PO 1 IN IV
2 in. Through 1 in. 4,000 psig CVS2S4TW16L2S 2400 SMT PO 1 IN IV
2 in. T-body 1 in. 4,000 psig CVS2S4DW16L2S 2400 SMD PO 1 IV
2 in. Through 2 in. 4,000 psig CVC2S4TWFEP2S 2400 SMT PB 2 IN IV
3 in. Through 3 in. ANSI 600 CVC3DRTWFEP2S 3 FMT 600RF PB 3 IV
4 in. Through 4 in. ANSI 600 CVC4DRTWFEP2S 4 FMT 600RF PB 4 IV
6 in. Through 6 in. ANSI 600 CVC6DRTWFEP2S 6 FMT 600RF PB 6 IV
8 in. Through 8 in. ANSI 600 CVC8DRTWFEP2S 8 FMT 600RF PB 8 IV
10 in. Through 8 in. ANSI 600 CVC0DRTWFEP2S 10 FMT 600RF PB 8 IV

*See the Kimray HP control valve cut sheets below for the full range of connection size, trim size and connection type options.

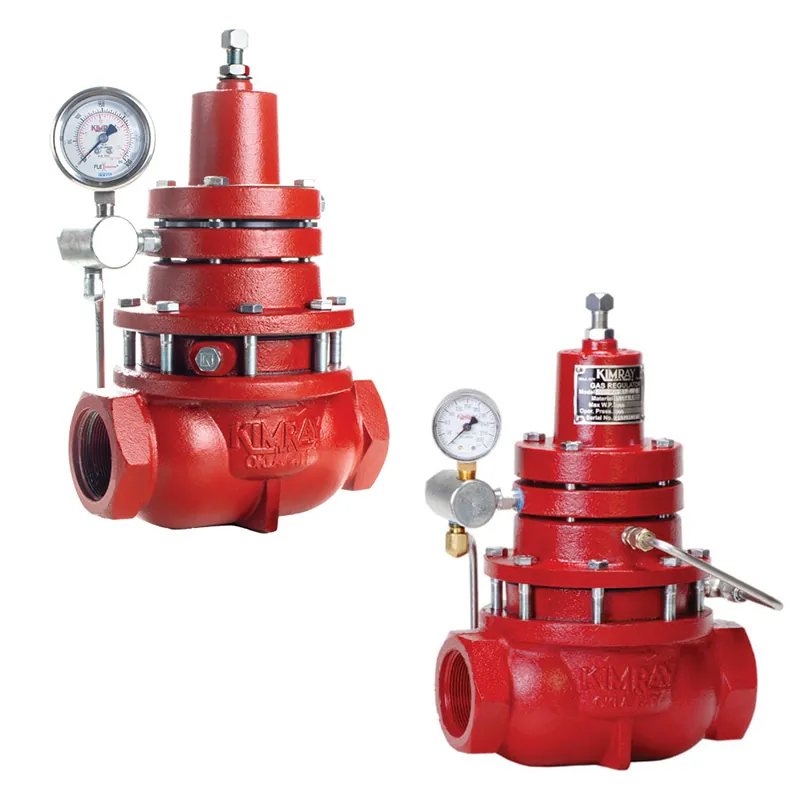

Kimray Pressure Regulator

Kimray Pressure Regulators

Kimray pressure regulators are the industry standard for back pressure, pressure reduction and differential pressure configurations. These regulators are also available in a non-venting configuration that will help you keep emissions low or for housed applications. Non-venting conversion kits are available for vented regulators.

  • Size: 1 in. – 6 in.
  • Pressure rating: 300 psig
  • Control range: 10 psig – 300 psig
  • Temperature range: -20°F – 250°F (options up to 450°F)
  • Material: ductile iron, WCB
  • Connections: NPT, flanged, grooved

This table represents popular product codes for Kimray Pressure Regulators. Please download the product cut sheets for the full range of sizes, connection types and pressure classes.

Connection Size Connection Type Regulator Type Pressure Rating Kimray Catalog Description
2 in. FNPT Back Pressure 300 psig RBP2SADF1S 230 SGT BP-D REG
2 in. FNPT Back Pressure Non-Venting 300 psig RBN2SADF1S 230 SGT BP-NV-D REG
2 in. FNPT Back Pressure 300 psig RPR2SADF1S 230 SGT PR-D REG
2 in. FNPT Differential Pressure 300 psig RDP2SADF1S 230 SGT PD-D 300# WP
2 in. Grooved Back Pressure 300 psig RBP2GVDF1S 230 GGT BP-D REG
3 in. 150 RF Pressure Reducing 250 psig RPR3ARDF1S 318 FGT PR-D REG
3 in. FNPT Back Pressure 300 psig RBP3SADF1S 330 SGT BP-D REG
4 in. 150 RF Pressure Reducing 250 psig RPR4ARDF1S 418 FGT PR-D REG
4 in. FNPT Back Pressure 300 psig RBP4SADF1S 430 SGT BP-D REG
6 in. 150 RF Back Pressure 250 psig RBP6ARDF1S 618 FGT BP-D REG

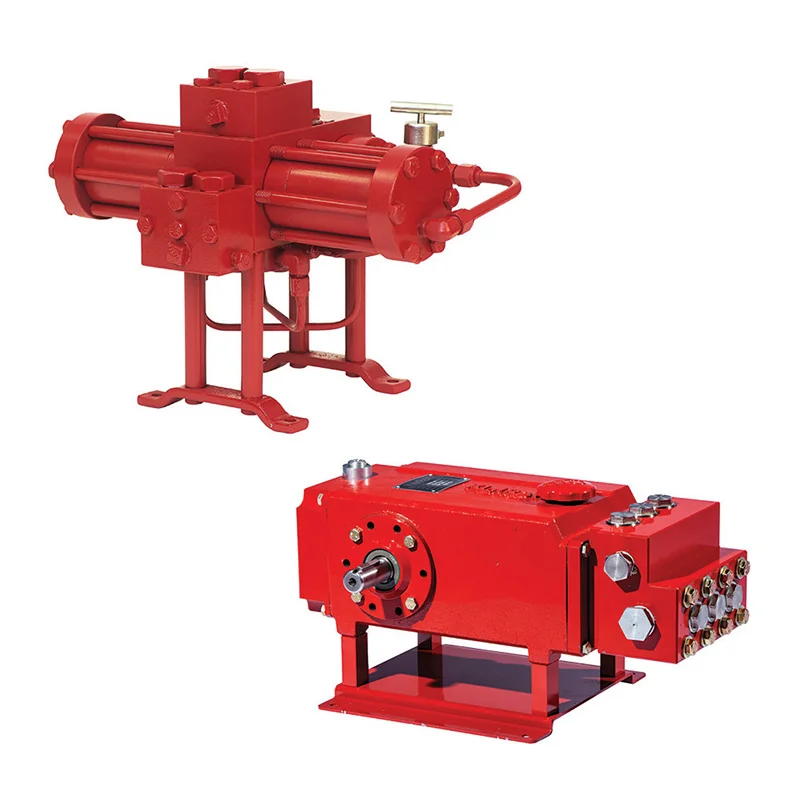

Kimray Glycol Pump

Kimray Glycol Pumps

Power your gas dehydration system with reliable, low-maintenance Kimray glycol pumps in both pneumatic and electric configurations.

Kimray Pneumatic Glycol Pumps

The pneumatic energy exchange glycol pump exchanges the energy contained in the contact tower gas pressure with the volume flow of the glycol, needing no external energy source outside of the closed loop dehydration system to operate.

  • Pressure rating: 100 psig – 2,000 psig
  • Glycol flow rate: 8 gal/hr – 450 gal/hr
Kimray Electric Glycol Pumps

The electric glycol pump combines the durability of a hydraulically-balanced diaphragm with the high-pressure capabilities of a plunger into one positive-displacement pump.

  • Pressure rating: 1,500 psig
  • Glycol flow rate: 6 gal/hr – 2,040 gal/hr
Standard Config. Code Order Code Flow Rate Min. Flow Rate Max. Operating Pressure Min. Operating Pressure Max.
GPV040S GABHSN 12 gal/hr 40 gal/hr 300 psig 2,000 psig
GPV090S GAFHSN 27 gal/hr 90 gal/hr 300 psig 2,000 psig
GPV210S GAHHSN 66 gal/hr 210 gal/hr 400 psig 2,000 psig
GPV450S GAJHSN 166 gal/hr 450 gal/hr 400 psig 2,000 psig
GPV020S GACHSN 8 gal/hr 20 gal/hr 100 psig 500 psig
GPV050S GAGHSN 12 gal/hr 50 gal/hr 100 psig 500 psig
GPV100S GAIHSN 22 gal/hr 100 gal/hr 100 psig 500 psig
GPV200S GAKHSN 60 gal/hr 200 gal/hr 100 psig 500 psig

Note: Maximum output is affected by system pressure drops.

Standard Config. Code Order Code Flow Rate Min. Flow Rate Max. Operating Pressure Min. Operating Pressure Max.
GEV500S GEA 90 gal/hr 500 gal/hr 0 psig 1,500 psig
GEV120S GEB 6 gal/hr 140 gal/hr 0 psig 1,200 psig

Note: Maximum output is affected by system pressure drops.

More Kimray Products

In addition to the highlighted products above, DNOW has a full line of high-quality valves, level controllers, valve assemblies and repair kits from Kimray. These products are ideal for a wide range of applications and environments, trusted in the field for both upstream and midstream

Kimray Liquid Dump Valve

Kimray liquid dump valves are reliable products designed to dump liquid from oil and gas production vessels such as separators, treaters and free water knockouts. Options include low pressure high volume (LPHV) valves for erosive conditions, as well as lever-operated and weight-operated valves for emissions-free liquid dumps.

  • Size: 2 in. – 6 in.
  • Pressure rating: 250 psig – 500 psig
  • Temperature range: -20°F – 450°F
  • Material: ductile iron, WCB
  • Connections: NPT, flanged

Kimray Gen II Liquid Level Controller

Kimray Gen II liquid level controllers operate pneumatic and electric control valves to maintain liquid level in a vessel. Simple to install, easy to adjust and straightforward to use, Gen II controllers were designed to be vibration-resistant and to operate in severe environments.

  • Pressure rating: 4,000 psig
  • Temperature range: -50 °F – 350°F
  • Connections: NPT, flanged, hammer union

Look out for Kimray's new Gen 3 Liquid Level Controller, coming in early 2022!

Kimray Valve Assemblies & Kits

Although valve bodies can last for years, internal components in harsh environments can require maintenance to maintain peak performance. Whether you are looking for a kit to repair your valve, or you want a pre-assembled plug, cage or piston assembly, Kimray and DNOW have you covered. Kimray plug, cage, and piston assemblies can be easily swapped in and out, even in-line, to limit production downtime.

About Kimray Inc.

Kimray is a manufacturer of oil and gas control equipment based in Oklahoma City, OK. Trusted for generations, Kimray has been creating simple, effective products for temperature, level, flow and pressure control since 1948. Kimray pledges the highest quality valves and control equipment with true customer service.

Let Kimray products make a difference in your next project. www.kimray.com
