Balon Ball Valves

100% Made in America

DNOW is an authorized distributor of Balon valves, always made from 100% domestic raw materials, machined and assembled in Oklahoma City, OK. Our comprehensive inventory of Balon floating ball valves, trunnion ball valves, swing check valves and needle valves means the full range of Balon products is available for quick delivery for your MRO needs or your next project.

*Please note: You need a DNOW eCommerce account to view our online catalog. Don't have one? Register easily on our sign-in page or click here to learn more about our online store.

Balon_logo
As an authorized distributor of Balon valves, DNOW proudly offers the full product line, designed to be dependable and capable of handling the most demanding applications. This page highlights some of the more popular Balon ball valves and latest new products. Contact our sales representatives for inquiries, quotes and questions. If you are ready to buy, click “Buy Now” to select size, port, class and other specifications.

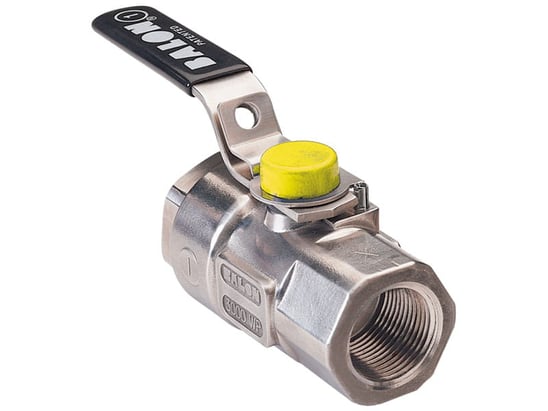

Balon Series LS Floating Ball Valves

Balon_LS_floating_ball_thumb

Series LS threaded-end stainless steel floating ball valves meet NACE and API 641 standards for reliable, maintenance-free performance.

  • 1/4 in. – 1 in.
  • Up to 3,000 psi working pressure
  • Lever-operated
  • Threaded body construction with mechanically retained end adapter
  • Multi-seal seats
  • All metal components made of 316 stainless steel
  • Fire safe design
Size Port Working Pressure Balon Catalog
0.25 x 0.37 x 0.25 in. 0.37 in. 3,000 psi LS-02592
0.50 x 0.37 x 0.50 in. 0.37 in. 2,000 psi LS-05561
0.50 x 0.37 x 0.50 in. 0.37 in. 3,000 psi LS-05591
0.50 x 0.50 x 0.50 in. 0.50 in. 3,000 psi LS-05592
0.75 x 0.75 x 0.75 in. 0.75 in. 3,000 psi LS-07592
1 x 0.75 x 1 in. 0.75 in. 2,000 psi LS-10561
1 x 0.75 x 1 in. 0.75 in. 3,000 psi LS-10591

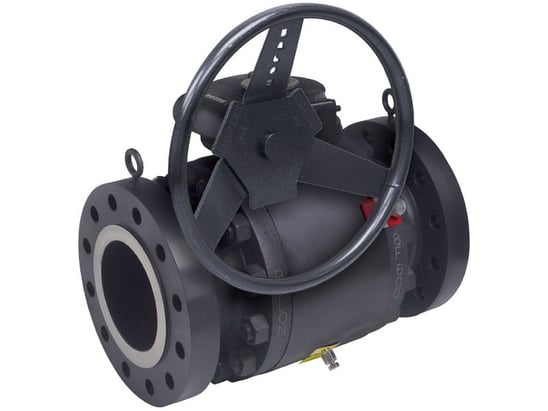

Balon Series T Trunnion Ball Valves

Balon_T_trunnion_ball_thumb

Series T flanged carbon steel trunnion ball valves offer an exclusive Balon gearbox and fire safe design that meets API 6D, API 6FA and API 641 standards.

  • 4 in. – 12 in.
  • ANSI Class 150, 300, 600 and 900
  • Gear-operated
  • Bolted body construction
  • Multi-seal seats
  • Flanged end connections (RF and RTJ)
  • Standard, carbon steel NACE and stainless steel NACE trims available
  • Available in ASTM A105 (-20 – 250°F) and A350 LF2 (-50 – 250°F)
Size Port Pressure Class Balon Catalog*
10 x 10 x 10 in. 10 in. ANSI 150 10F-T13-RF
12 x 12 x 12 in. 12 in. ANSI 150 12F-T13-RF
8 x 8 x 8 in. 8 in. ANSI 300 8F-T33-RF
10 x 10 x 10 in. 10 in. ANSI 300 10F-T33-RF
12 x 12 x 12 in. 12 in. ANSI 300 12F-T33-RF
4 x 4 x 4 in. 4 in. ANSI 600 4F-T63
6 x 6 x 6 in. 6 in. ANSI 600 6F-T63
8 x 8 x 8 in. 8 in. ANSI 600 8F-T63
10 x 10 x 10 in. 10 in. ANSI 600 10F-T63
12 x 12 x 12 in. 12 in. ANSI 600 12F-T63
4 x 4 x 4 in. 4 in. ANSI 900 4F-T93

*Balon catalog numbers are standard trim, carbon steel ball & stem. NACE trim variants are also available.

New Product!

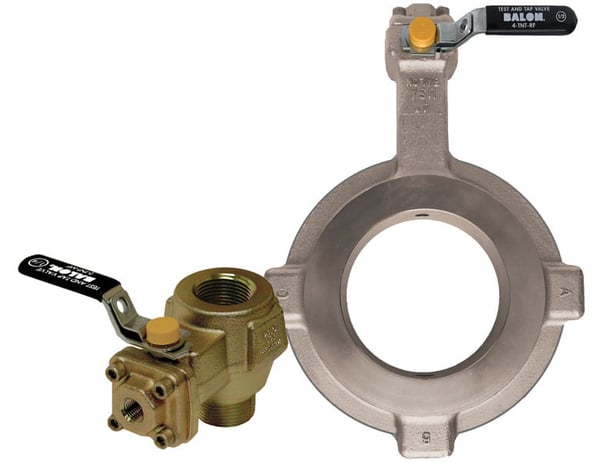

Balon Test and Tap Valves

Balon_test-tap_thumb

Test and Tap® (TNT) valves are fire safe and ready to install for pressure relief, drains, taps, instrumentation attachments, chemical injection and sampling applications. These valves are certified low emission per API 641 and NACE compatible.

Threaded Test and Tap
  • 3/4 in. – 2 in.
  • 316 stainless steel ball/stem
  • Bolted construction
  • 3,000 psi working pressure
Flanged Test and Tap
  • Replaces common bleed ring, nipple and ball valve combination
  • 2 in. – 12 in.
  • 316 stainless steel ball/stem
  • Bolted construction
  • ANSI Class 150, 300, 600

Even More Balon Products

In addition to the highlighted products above, DNOW has a full line of high-quality, 100% made in America valves from Balon. These products are ideal for a variety of applications in the oil and gas industry, with proven superior quality and performance in the field.

Floating Ball Valves

  • 1/4 in. – 10 in.
  • Flanged, grooved, threaded and welded pipe connections
  • Carbon steel, stainless steel, ductile iron, aluminum bronze
  • Threaded, bolted or welded body
  • Lever or gear operated
  • Up to 5,000 psi working pressure and ANSI Class 150, 300, 600, 900, 1500

Trunnion Ball Valves

  • 4 in. – 12 in.
  • Carbon steel, ASTM A105 and A350 LF2
  • Bolted body
  • ANSI Class 150, 300, 600, 900

Instrumentation Needle Valves

  • 1/4 in. – 1/2 in.
  • Carbon steel & stainless steel
  • Mechanically retained bonnet
  • Resilient seated or metal seated
  • 6,000 & 10,000 psi working pressure

Swing Check Valves

  • 1 in. – 6 in.
  • Flanged, grooved and threaded pipe connections
  • Carbon steel, ductile iron, aluminum bronze
  • Threaded, bolted and one-piece body
  • Up to 3,000 psi working pressure and ANSI Class 150, 300, 600

Wafer Check Valves

  • 2 in. – 6 in.
  • Forged carbon steel
  • Thin pattern & long pattern
  • ANSI Class 150, 300, 600

About Balon

Balon is a family-owned company based in Oklahoma City, OK with a reputation for providing valves that have proven their superior quality and have become the standard by which all others are judged. In its 5+ decades of operation, it has expanded to a modern manufacturing facility that encompasses more than 1,500,000 square feet today. High-quality domestic raw materials are brought into their own manufacturing plant for processing and an extensive QA process. Hundreds of dedicated employees inspect every component following each machine operation to meet customers’ highest expectations.

What does it mean to be 100% American made? Demand proof. Insist on Balon. www.balon.com
