Oglaend System

Enhancing EPC Projects with Quality Solutions

Designed with quality and durability in mind, Oglaend also offers solutions to reduce total system cost of EPC costs by reducing weight, cutting installation and engineering time and simplifying future modification work. MacLean International, an approved solutions partner for Oglaend, stocks cable tray and ladder and has a full range of tubing clamps, channel and accessories available for immediate delivery.

Oglaend System is a leading supplier of multidiscipline support systems, cable trays, cable ladders, and accessories worldwide.

Browse MacLean International Group Technical Library

Browse the Cable Supports category in our technical library for product details, specifications and images. If you can't find what you're looking for, don't hesitate to call us for a chat! In our technical library, you'll also find an enquiry basket. Simply add the products you're interested in to the basket, fill out the form, and we'll promptly send you a quote.

Discover Our Extensive Range of Oglaend Products

The Oglaend range of products include varying types and sizes of cable ladder and tray supports in stainless steel and fibre reinforced plastic (FRP). In addition to a broad range of cable support systems, Oglaend System also offer tubing clamps for instrumentation and small bore pipes cable ties and trefoil cable cleats (SmartCleat™ for high voltage cable). Here we highlight some of the key Oglaend cable tray and ladders. To view a more comprehensive range and further specification, please view our Technical Library or contact our sales team (links to Technical Library and to sales team form/contact details).

Oglaend System SPBE Cable Tray System

A simplified cable tray the SPBE system is suitable for tubing and light electrical installations. Available with a wide range of accessories and fittings, this tray features slot patterns to enable optimal positioning of equipment and provides ease of access for cable ties and fixings.

SPBE system: a simple cable tray for tubing and light electrical installations for optimal equipment positioning and easy access.

Product Details

  • Compatible with ETIN™ and INKO® tubing adapters for trays up to 200mm wide.
  • For trays over 300mm, adapters are available for fitting of INKO®.
  • Available in stainless steel (SS), Hot Dip Galvanized (HDG), Zinc Aluminium Magnesium (ZM), Aluminium (AL), Pre-Galvanized (PG)
  • Available in 20mm (SPBE20) or 40mm (SPBE40) height
  • Widths: o 50mm o 100mm o 150mm o 200mm o 300mm o 400mm o 500mm (only available for SPBE20) o 600mm (only available for SPBE20)
  • Lateral or longitudinal slots for full flexibility to install all types of tubing clamps
  • Full range of cable tray accessories available, including brackets and fittings

Oglaend System SPB-RF Cable Tray System

Featuring a return flange to eliminate sharp edges, the Oglaend System SPB-RF cable tray is designed with a slot pattern for optimal positioning of cable ties and fixings. Available with a wide range of accessories.

Oglaend System SPB-RF cable tray has a slot pattern and a return flange. It offers optimal cable tie and fixing placement and no sharp edges.

Product Details

  • Available in 40mm and 60mm heights
  • Heights available – 50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500mm
  • Increased load capacity with return flange
  • Available in stainless steel (SS), Hot Dip Galvanized (HDG), Zinc Aluminium Magnesium (ZM), Aluminium (AL)
  • Alternating slot patterns to allow flexibility for installation of all types of tubing clamps and other equipment
  • Wide range of cable tray accessories, brackets and fittings

Oglaend System FTE Cable Tray System

A composite cable tray system, the Oglaend FTE cable tray system is designed for electrical and instrumentation installations with pre-slotted trays to avoid unnecessary drilling time. Manufactured in corrosion resistant FRP (fibre reinforced plastic), this system is lightweight and rust resistant whilst providing strength and maximising load capacity.

Oglaend FTE: composite cable tray system for electrical & instrumentation installations. It has pre-slotted trays, FRP material & high load capacity.

Product Details

  • Available in 5 resin materials – Anti-static polyester (A), OLSTAR (Oglaend Low Smoke & Toxicity Acrylic Resin, Vinyl Ester (VE), OLSTAR ABS (for projects requiring ABS or BV certification)
  • Available in 50mm and 80mm heights
  • Widths of 50mm, 100mm, 150mm, 200mm, 300mm, 400mm and 600mm
  • Accessories, including snap-on covers, clips, fixing clamps and smart jigs also available

Oglaend System FOE Cable Ladder System

Designed to deliver weight reductions while maintaining strength and maximizing loading capability, the FOE cable ladder system is made in corrosion resistant fibre reinforced plastic (FRP/GRP) and offers HSE improvements when lifting and fitting ladder and support equipment. The cable ladders are available in five different resin materials, formulated to satisfy special project requirements.

Oglaend FOE: cable ladder system for electrical & instrumentation installations, made of corrosion resistant FRP/GRP

Product Details

  • Available in 3m and 6m lengths
  • Available in rail heights of 70mm, 100mm and 150mm
  • Standard and customisable rung widths
  • Fitting accessories available in FRP and SS
Oglaend System FOE Cable Ladder System Specifications Table

Oglaend System OE Cable Ladder System

Designed for high loading capacities but with reduced weight, the Oglaend System OE Cable Ladders have roll formed edges and return flanges for additional safety, easier handling and lifting.

Oglaend System OE Cable Ladders are light, strong and safe. They have roll formed edges and return flanges for easy handling and lifting.

Product Details

  • Available in stainless steel (SS), hot dip galvanized (HDG) and zinc aluminium magnesium (ZM)
  • 100mm, 125mm and 150mm heights
  • Alternating slot patterns for optimal fitting of tubing clamps, cable ties and short circuit cable cleats Perforations along length of ladder for ease of adjustment and secure connection
  • Rail and rung ladder design for connection of equipment directly onto ladder

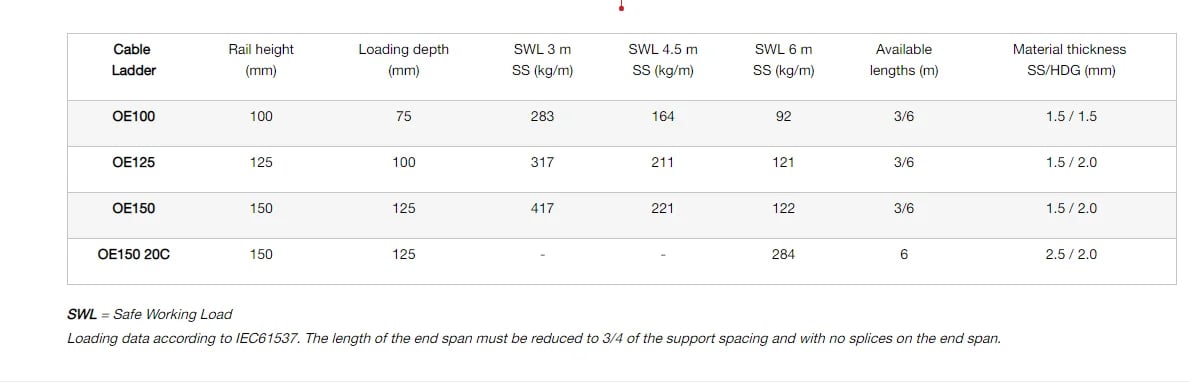

Oglaend System OE Cable Ladder System product data table

More Oglaend System products

  • Cable ladder
    • Side wall heights from 50mm to 150mm
    • Light to heavy load
    • Lightweight and robust
    • Painted, pre-galvanised, hot dipped galvanised, stainless steel, aluminium and FRP
    • Accessories including:
      • Bends
      • T-pieces
      • Risers, etc.
  • Cable tray
    • Suitable for applications on ships, constructions, industrial plants, on and offshore oil and gas installations
    • Standard trays with 20mm to 60mm side walls
    • With or without return flanges
    • Multi-discipline for use with electrical cable, instrumentation and tubing installations
  • Tubing clamps
    • To fit all types of cable trays and cable ladder
    • ETIN® and INKO® tubing clamps
    • Cost reduction of up to 65% compared to traditional solutions
    • Quick installation, space saving, flexible, easy to build in height
  • MultiGrid™ multi-discipline support system
    • Covers all welded and bolted starter brackets, channels and frames
    • Suitable for all main disciplines including electrical, instrumentation, telecom, HVAC and piping
    • Compatible components for maximum support flexibility across disciplines
    • Bolted solution available
  • UNO Support system
    • Established systems with fittings and accessories
    • Suitable for use as alternative or supplementary support system
    • Used widely within Oil and Gas and Civil Construction
    • Wide range of channels
    • Special beam clamps to fix to steel beams
  • Mekano® triangular channel
    • Flexible, lightweight & cost saving
    • Suitable for all main disciplines including electrical, instrumentation, telecom, HVAC and piping.
    • Available in a range of profiles, grades and materials
    • Quicker to instal, safer in construction
    • Back-to-back fitting without the need for additional brackets or fittings
    • Generous access holes for easy access
    • Available to bolt together using anti-static vibration fasteners or in pre-assembled sections
    • Flexibility in design and installation in initial construction and adaptation or upgrade works
  • Junction boxes & instrument stands
    • Junction box racks
    • Equipment plates
    • Instrument stands
    • Smart boxes
    • Bolted assemblies
    • Complete and ready to weld with instruments and equipment, or fixed to pre-welded brackets or studs
    • Single or double-sided mounting

Technical Product Library

Discover Oglaend System Product Information

Explore our full suite of Oglaend System offerings in our Technical Library. Here, you can access detailed specifications and comprehensive product information to select the perfect solution for your needs.

Explore MacLean Technical Library and Build Your Enquiry Basket with Essential Electrical, Industrial MRO, Safety, Valves, and Pump Products.

Ready to take the next step?

About Oglaend System

Pioneering Multidiscipline Support Solutions Since 1977

Established in Norway in 1977, Oglaend System has carved a niche as a frontrunner in the global market for multidiscipline support systems, cable trays, cable ladders and a suite of innovative accessories. At the heart of our product range is the revolutionary MultiGrid® concept, a testament to our commitment to excellence and innovation in support solutions. Owned by Hilti, they are a global organisation with factories in Norway, Russia, Malaysia and China. Whether it’s for complex industrial projects or more straightforward applications, Oglaend System’s products are engineered to enhance efficiency and safety, reaffirming our position as a trusted partner
